The Penetration Depth Of Weld Metal In Underwater Welding With Variations In Water Depth And Water Flow Velocity

Fajar Paundra, A. Juan, Triyono Triyono, P. Elmiawan, P. Yunesti

Abstract

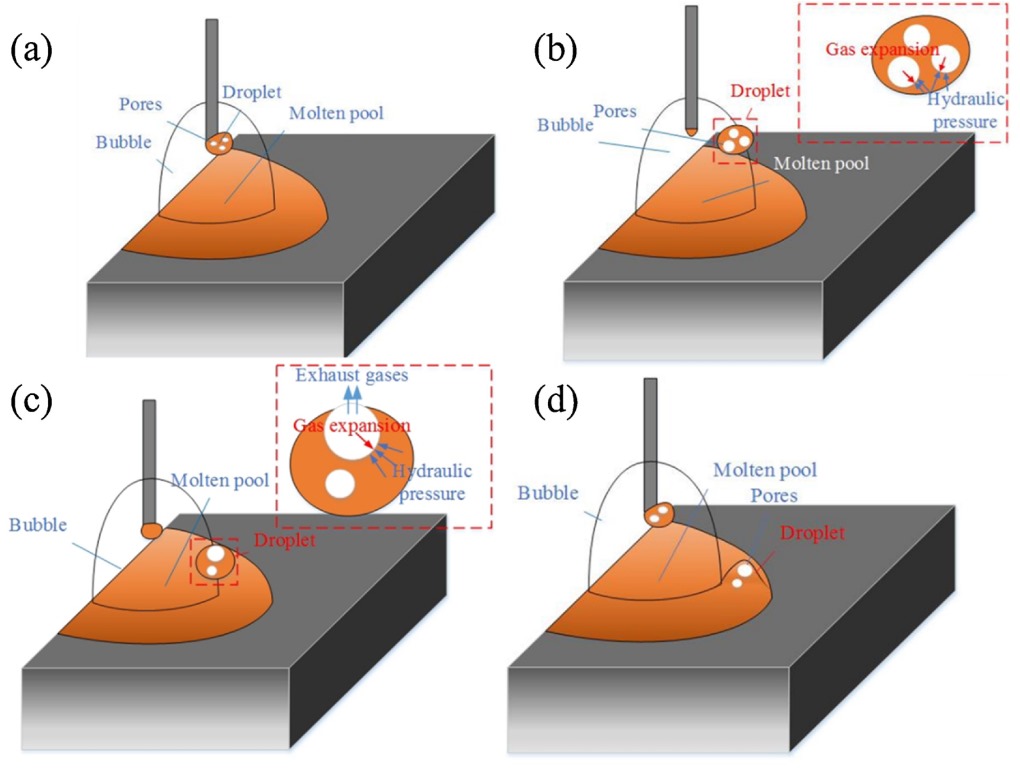

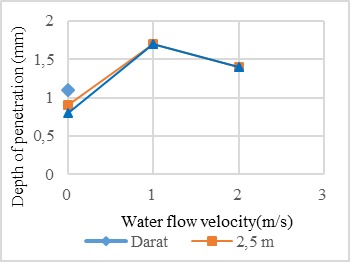

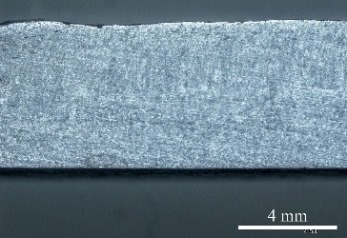

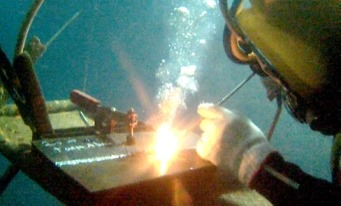

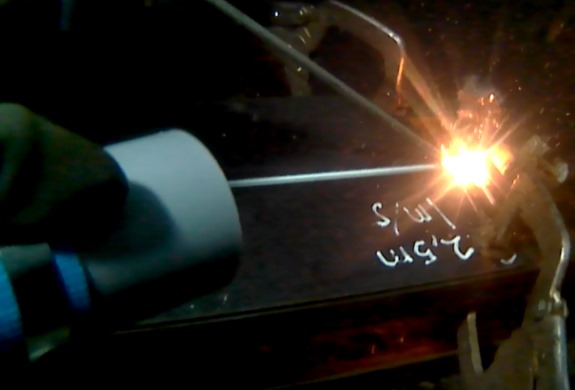

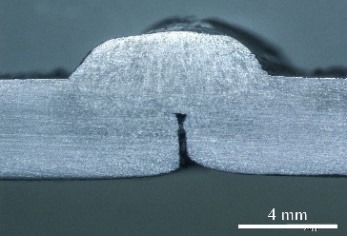

Underwater wet welding (UWW) is widely used in the repair of offshore construction and underwater pipelines using the Shielded Metal Arc Welding (SMAW) method. This research was conducted to see the effect of flow (0 m/s, 1 m/s, and 2 m/s) and water depth (2.5 m and 5 m) on the depth weld metal penetration of the SS400 steel underwater welded joints. The control variables used were welding speed of 1.5 mm/s, current of 90 A, electrode E6013 (RB26) with a diameter of 4 mm, type of negative electrode polarity (DC), spraying distance of 10 cm, the direction of spraying in the opposite direction of welding, and fresh water. The results showed that the deeper and fast the flow velocity would decrease the depth of penetration and increases porosity. This is due to the decreased transferability of the molten metal during the welding process.


Keywords


underwater welding, SMAW, Macrostructure

Full Text:

PDF

References


J. Anindito, F. Paundra, and N. Muhayat., 2012, “Pengaruh aliran dan kedalaman air terhadap hasil pengelasan dan kekerasan sambungan las bawah air baja SS400”, Teknik Mesin Indonesia, vol. 15, no. 2, pp. 1–13.

E. Van Puymbroeck, W. Nagy, H. Fang, and H. De Backer, 2018, “ScienceDirect ScienceDirect ScienceDirect Determination Determination of of residual residual weld weld stresses stresses with with the the incremental incremental hole-drilling method in tubular steel bridge joints method in tubular steel bridge joints”, Procedia Eng., vol. 213, pp. 651–661.

P. Zhang, Y. Chen, W. Xiao, D. Ping, and X. Zhao, 2016, “Progress in Natural Science : Materials International Twin structure of the lath martensite in low carbon steel”, Prog. Nat. Sci. Mater. Int., vol. 26, no. 2, pp. 169–172.

J. Wang, Q. Sun, S. Zhang, C. Wang, L. Wu, and J. Feng, 2018, “Characterization of the underwater welding arc bubble through a visual sensing method,” J. Mater. Process. Tech., vol. 251, pp. 95–108.

L. Han, X. Wu, G. Chen, Z. Wang, and W. Fan, 2019, “Local dry underwater welding of 304 stainless steel based on a microdrain cover,” J. Mater. Process. Tech., vol. 268, no. December 2018, pp. 47–53.

H. Chen, N. Guo, K. Xu, C. Xu, L. Zhou, and G. Wang, 2020, “In-situ observations of melt degassing and hydrogen removal enhanced by ultrasonics in underwater wet welding”, Mater. Des., vol. 188, p. 108482.

Y. Han, S. Dong, M. Zhang, C. Jia, M. Zhang, and C. Wu, 2020 “A novel underwater submerged-arc welding acquires sound quality joints for high strength marine steel”, Mater. Lett., vol. 261, p. 127075.

G. Sun, C. Wang, X. Wei, D. Shang, and S. Chen, 2019, “Materials Science & Engineering A Study on small fatigue crack initiation and growth for friction stir welded joints”, Mater. Sci. Eng. A, vol. 739, pp. 71–85.

F. Paundra, J. Anindito, N. Muhayat, Y. C. N. Saputro, and Triyono, 2020, “Effect of Water Depth and Flow Velocity on Microstructure, Tensile Strength and Hardness in Underwater Wet Welding,” IOP Conf. Ser. Mater. Sci. Eng., vol. 833, no. 1.

D. Zhang, Y. Zhao, M. Dong, G. Wang, and A. Wu, 2019, “Effects of weld penetration on tensile properties of 2219 aluminum alloy TIG-welded joints”, vol. 29, 2019.

E. Surojo, E. Dwi, W. Syah, and E. P. Budiana, 2020, “ScienceDirect ScienceDirect Recent Developments on Underwater Welding of Metallic Material,” Procedia Struct. Integr., vol. 27, pp. 14–21.

N. Guo, M. Wang, Y. Du, W. Guo, and J. Feng, 2015, “Metal transfer in underwater flux-cored wire wet welding at shallow water depth”, Mater. Lett., vol. 144, pp. 90–92.

P. Henrique, R. Menezes, E. Caires, P. Pessoa, and A. Queiroz, 2019 “Comparison of underwater wet welding performed with silicate and polymer agglomerated electrodes”, J. Mater. Process. Tech., vol. 266, pp. 63–72.

Y. Zhang, C. Jia, B. Zhao, J. Hu, and C. Wu, 2016, “Heat input and metal transfer influences on the weld geometry and microstructure during underwater wet FCAW”, J. Mater. Process. Technol., vol. 238, pp. 373–382.

R. Johnson, 1997, “The Effect of Water Temperature on Underbead Cracking of Underwater Wet Weldments“, no. September. Monterey: Naval Postgraduate School.

H. L. Li, D. Liu, Y. T. Yan, N. Guo, Y. B. Liu, and J. C. Feng, 2018, “Effects of heat input on arc stability and weld quality in underwater wet flux-cored arc welding of E40 steel”, J. Manuf. Process., vol. 31, pp. 833–843X.

D. Fydrych and G. Rogalski, 2014, “Problems of Underwater Welding of Higher-Strength Low Alloy Steels”, no. 4, pp. 187–195.

E. F. Alajmi, 2016, “Underwater Welding techniques”, J. Eng. Res. Appl. www.ijera.com ISSN, vol. 6, no. 36, pp. 2248–962286.

H. Chen, N. Guo, X. Shi, Y. Du, J. Feng, and G. Wang, 2018, “Effect of Hydrostatic Pressure on Protective Bubble Characteristic and Weld Quality in Underwater Flux Cored Wire Wet Welding”, J. Mater. Process. Tech., vol. 259, no. 2, pp. 159–168.

N. Guo, X. Xing, H. Zhao, C. Tan, J. Feng, and Z. Deng, 2016, “Effect of water depth on weld quality and welding process in underwater fiber laser welding”, Mater. Des.

H. Chen, N. Guo, X. Shi, Y. Du, and J. Feng, 2018, “Effect of water flow on the arc stability and metal transfer in underwater flux-cored wet welding”, J. Manuf. Process., vol. 31, pp. 103–115.

W. Gao, D. Wang, F. Cheng, X. Di, C. Deng, and W. Xu, 2016 “Microstructural and mechanical performance of underwater wet welded S355 steel,” J. Mater. Process. Technol., vol. 238, pp. 333–340.

H. Chen, N. Guo, X. Shi, Y. Du, J. Feng, and G. Wang, 2018 “Effect of water flow on the arc stability and metal transfer in underwater flux-cored wet welding”, J. Manuf. Process., vol. 31, pp. 103–115.




DOI: http://dx.doi.org/10.23960/mech.v12.n1.202105

Refbacks

  • There are currently no refbacks.


Contact and E-Mail : (Phone) 0721-704947, (E-Mail) : Jurnal.Mechanical@eng.unila.ac.id


Statcounter Journal Mech
Flag Counter
Creative Commons License
MECH is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License.
